Transfer Function of Electrical Circuit

Procedure for finding the transfer functions of electric networks:
1. First draw the given electrical network in the s domain with each inductance L replaced by sL and each capacitance replaced by 1/sC.
2. Replace all sources and time variables with their Laplace transforms so that v(t) is replaced by V(s) and i(t) by I(s) respectively.
3. Use KVL,KCL , mesh analysis, node analysis to write the network equations
4. Solve the equations simultaneously for getting the output.
5. Form the transfer function
Example:

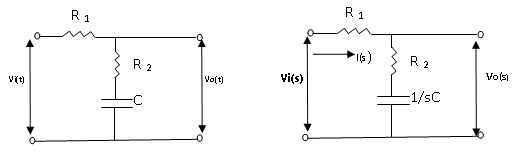

Determine the transfer function of the phase lag network shown in the figure,

TF6

Solution: Figure shows the network in s-domain

By KVL in the left hand- mesh,

\\{ V }_{ i }(s) = { R }_{ 1 }I(s)+R_{ 2 }I(s)+\frac { 1 }{ sC } I(s)\By KVL in the right-hand- mesh

\\{ V }_{ o }(s) =R_{ 2 }I(s)+\frac { 1 }{ sC } I(s)\The transfer function from the above two equations is given by,

TF7
