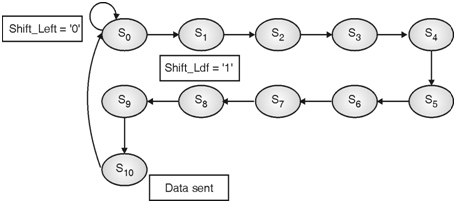

UART Transmitter Design : The UART transmitter receives 8 bit parallel data and converts it into a 10 bit serial data adding one start and one stop bit. I have used a finite state machine to implement a behavioral model for transmitter section. This machine has eleven states S0 to S10. State 0 is idle state when transmitter is waiting for the data to be high on input lines. As soon as â€œShift_LdFâ€ signal goes low (which signals incoming data), the state machine switches to state S1 and disables â€œXmitMTâ€ signal (which signals receiver that data is being sent) while concurrently loading a ten bit logic vectorâ€™s first bit with the â€œstartâ€ bit â€œ0â€ and rest with â€œ0â€. The machine then switches to state S2 and S3 and so on at every rising edge of clock there by tapping data to different bit of logic vector keeping other bits â€œ0â€. This results in a condition where in at each clock cycle only one bit of vector will contain desired information. In S10 â€œXmitMTâ€ signal is raised and after that all bits of bit vector are ORed to result in output. In short each state sets one bit while resetting others. Present state Next state Input shift_LdF Output XmitMT Sg 0000 0001 1 1 100000000 0000 0000 0 0 x 0001 0010 x 0 000000000 0010 0011 x 0 0(D7)00000000 0011 0100 x 0 00(D6)0000000 0100 0101 x 0 000(D5)000000 0101 0110 x 0 0000(D4)00000 0110 0111 x 0 00000(D3)0000 0111 1000 x 0 000000(D2)000 1000 1001 x 0 0000000(D1)00 1001 1010 x 0 00000000(D0)0 1010 0000 x 0 0000000001 Note- Serial_data is then stored result of Sg(0) to Sg(9)
